Details:
A 42.0m long pipe rack road crossover with 2 tiers to support process & utility piping with a top tier to support instrument & cable trays from different units of the entire plant.
Components:
Structural steel framing over concrete pedestals + steel braced frames + shallow foundation
Services Provided:
SMVE provided full structural services from concept to construction including fabrication drawings. The project coordination, with multiple disciplines, during the design phase was provided.
Important Information:

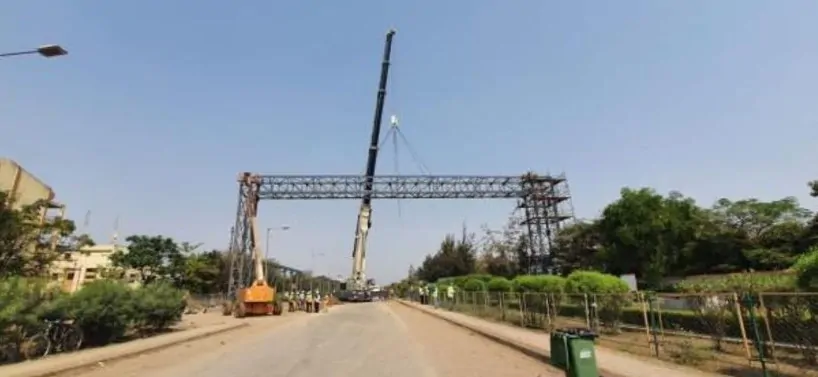

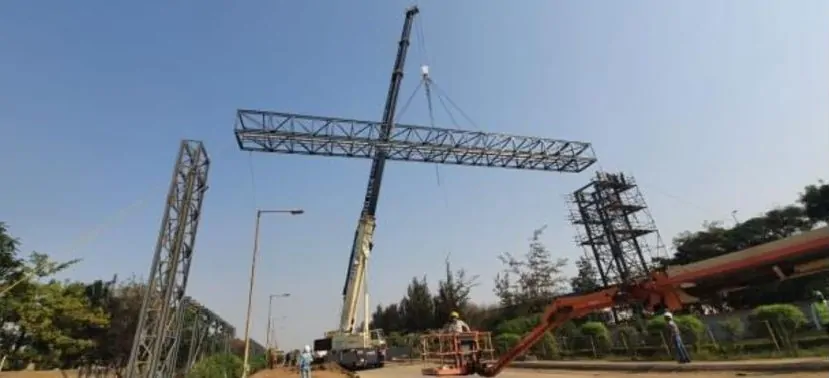

Trussed pipe rack road crossover was designed to carry pipes & cable trays over longer spans at road crossings. We designed bracket connection to support truss and ease of installation and rapid erection. Vertical steel braced towers & footings were designed to support the pipe rack cross-over.
