Details:
11,25,874 sft, 21-storey Residential project with three basement parking levels.
Components:
RC slabs, PT beams, RC columns + RC shear walls + Moment frames.
Services Provided:
SMV carried out a structural audit/review for this project and provided the final approval of the structural design. Gravity and lateral load paths, and structural behavior of the members were thoroughly evaluated. During the review process, critical comments on the analysis models and structural design were provided to the structural engineer of record (SEOR) via several corrections cycles. Subsequent to satisfactory resolution of all our comments by the SEOR, the final structural audit certificate was issued to the client. As a part of value engineering, a few suggestions/recommendations on structural systems, for better performance and for construction ease, were provided to the client.
Project Highlights:

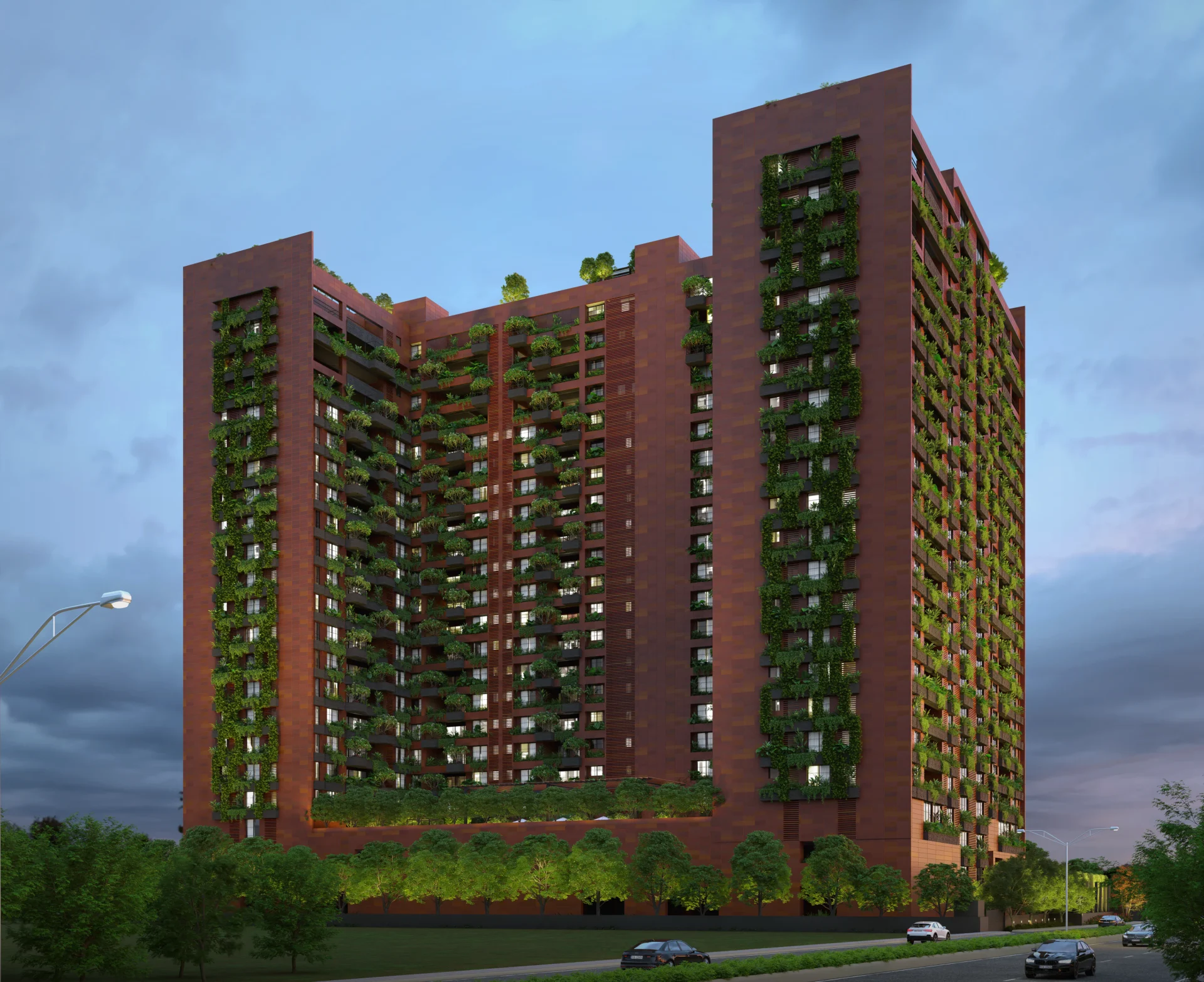

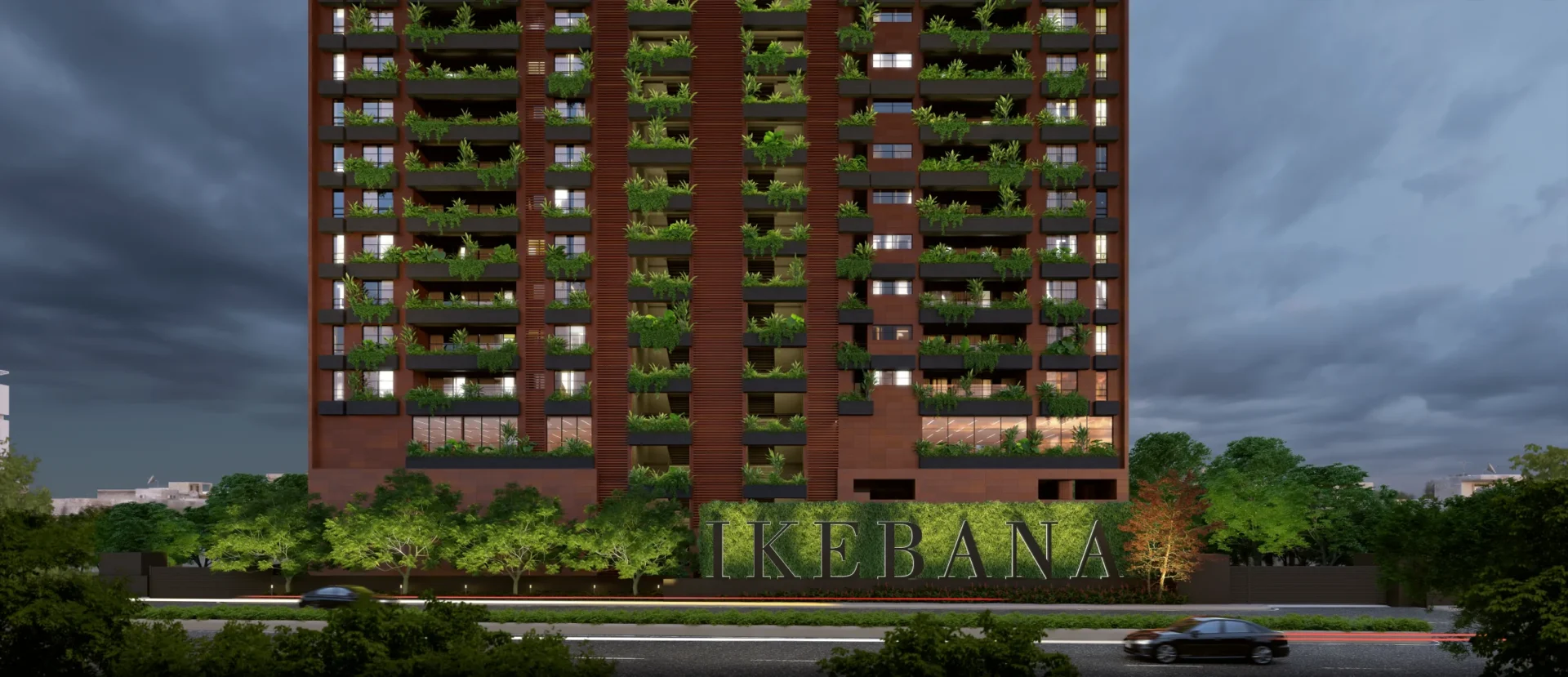

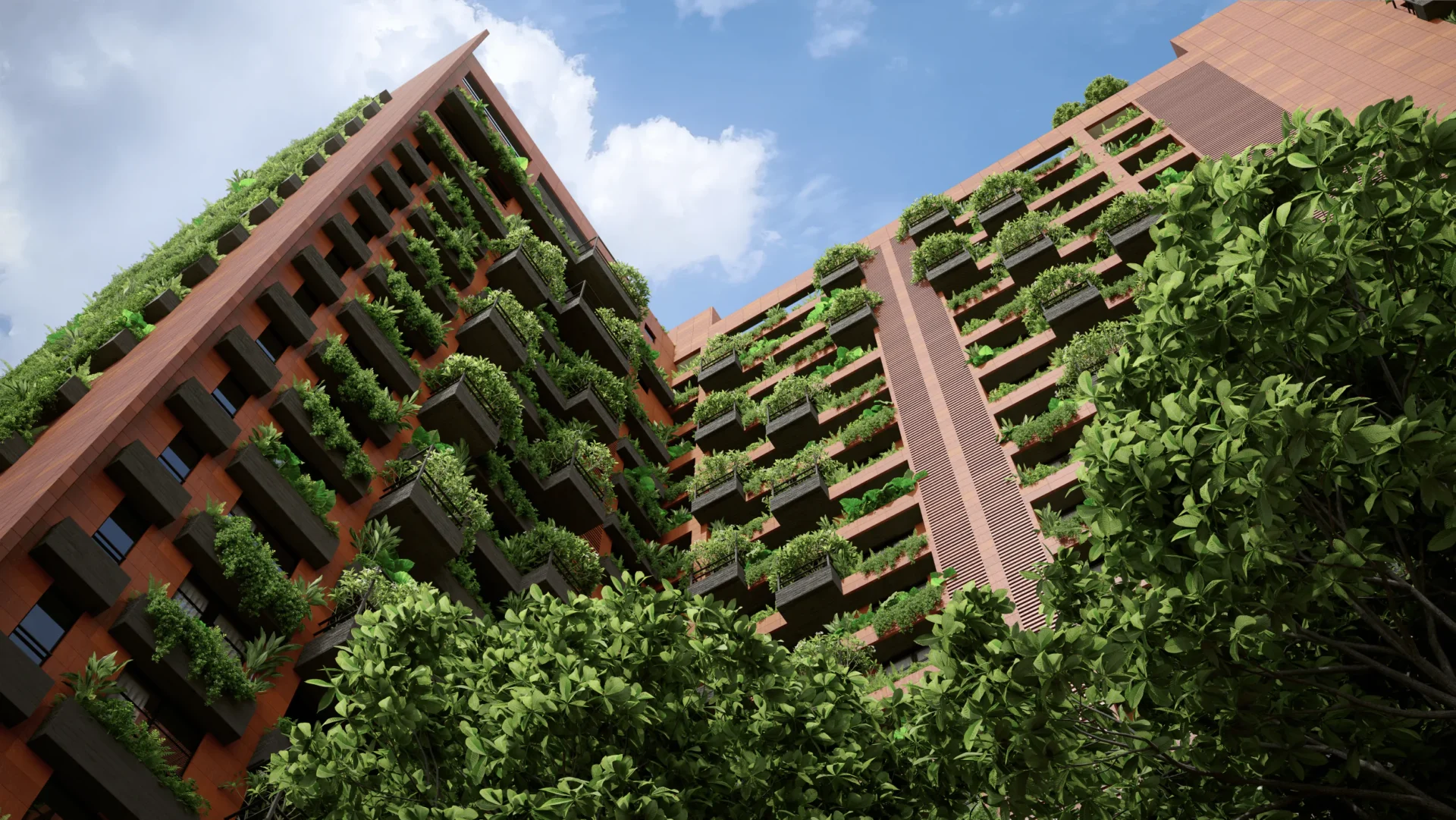

The project has a single tower. There are 3 Basements + Ground Floor + Podium floor +Amenity Floor + Typical Floor (1st floor to 15th Floor) + Duplex Floors (16th to 19th Floor) + Overhead water Tank in the building.
