Details:

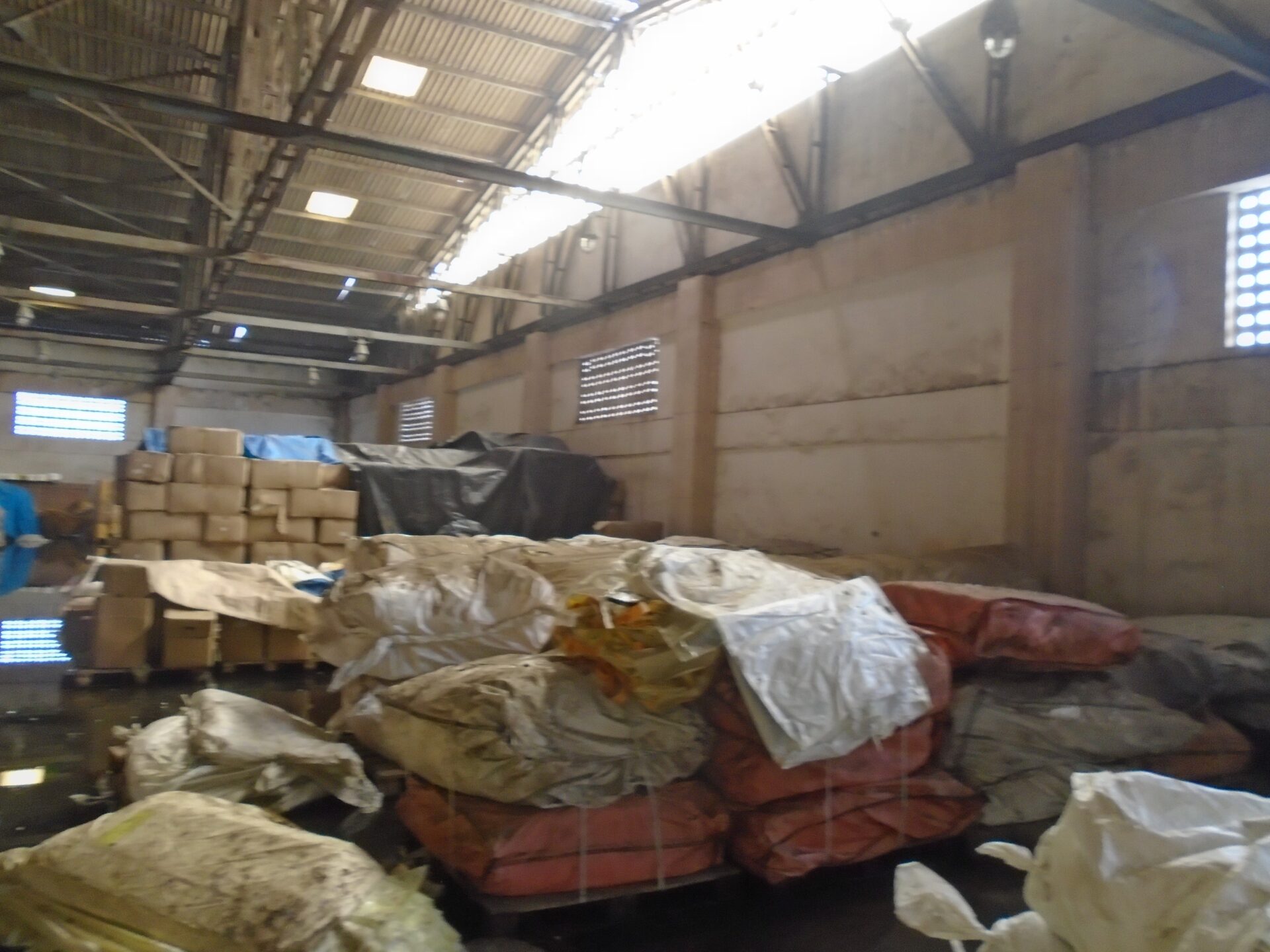

The expansion of 6200sft x 39.4ft high warehouses with RC mezzanine floor.
Components:
RC beam-column slab, steel roof trusses, shallow Foundation
Services Provided:
SMVE evaluated the structural stability of the 15-year-old existing structure for the new expansion of the warehouse. RC beam-column frame structure supporting long span roof trusses were used for the expansion. SMVE provided complete design and working drawings. SMVE extended its services to the client during CA work.
Important Information:

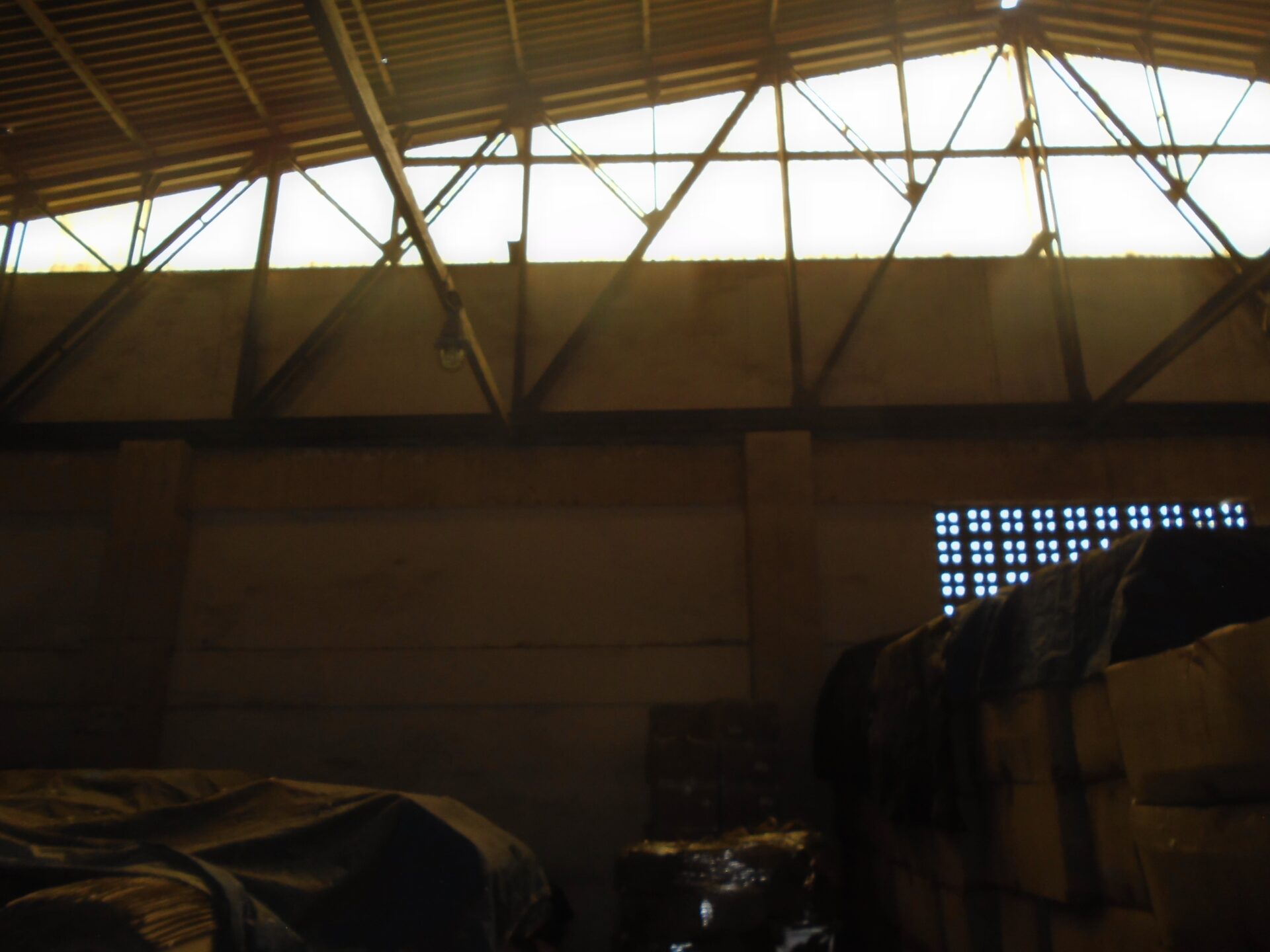

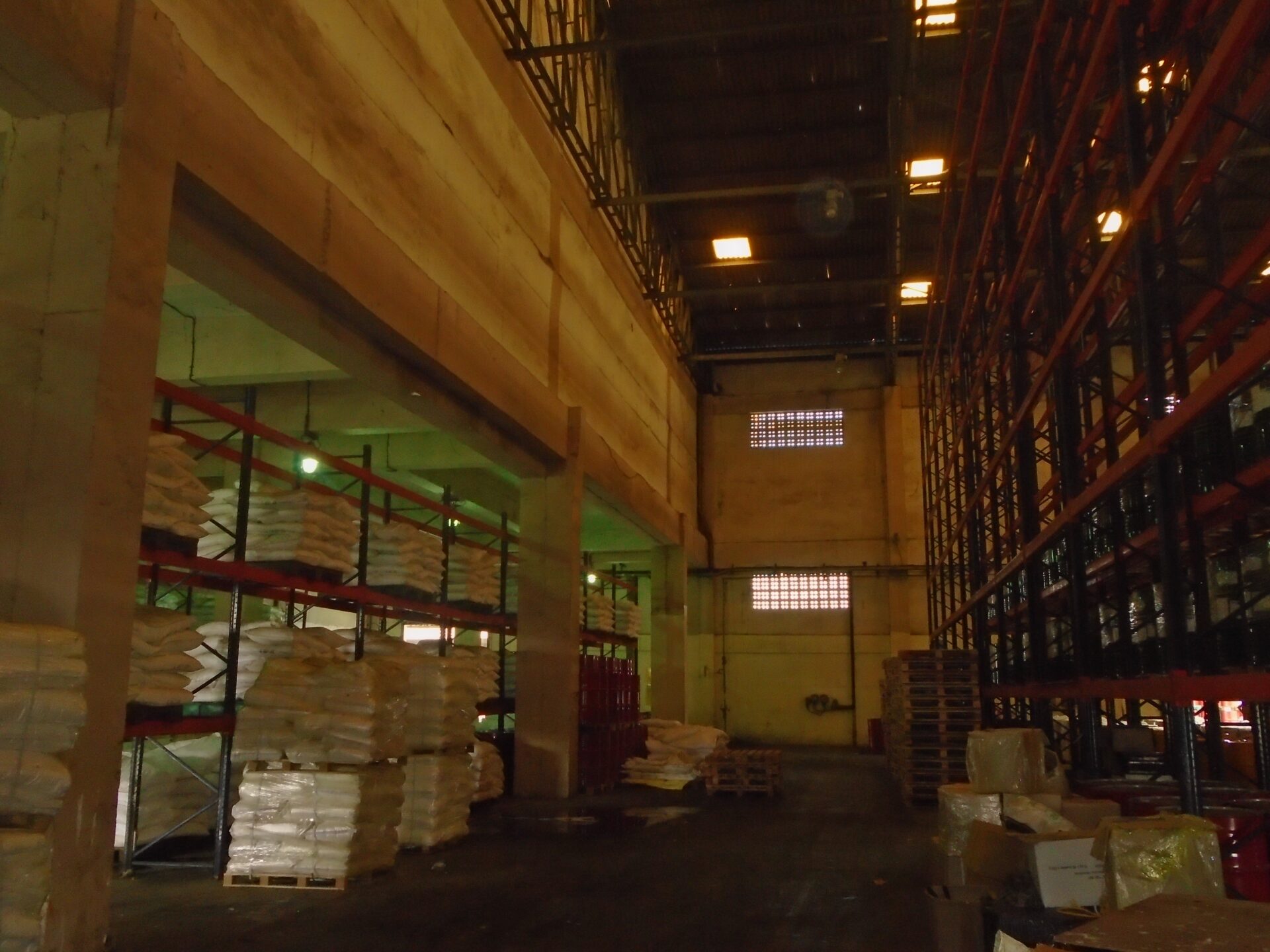

SMVE designed 157ft span new truss for the expansion that was supported on the RC columns. Also, a partial mezzanine floor for storage was added extending the existing mezzanine storage. SMVE evaluated the condition of existing elements for new storage loadings as well.
